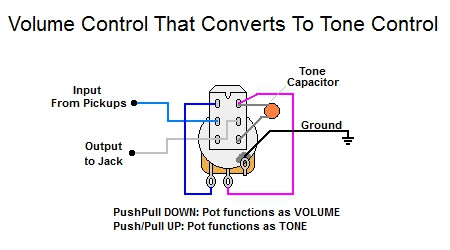

This guitar wiring modification shows how to wire a standard push/pull pot to function as a volume control in the down position as a tone control in the up position. With the push/pull pot in the down position, the pot will function as a volume control and the tone feature is bypassed. With the push/pull in the up position, the pot will function as a tone control and the volume will go to 100%.
Click diagram image to open full size version. Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies to do the job right. Copyright© GuitarElectronics.com LLC. Unauthorized republication is prohibited.
