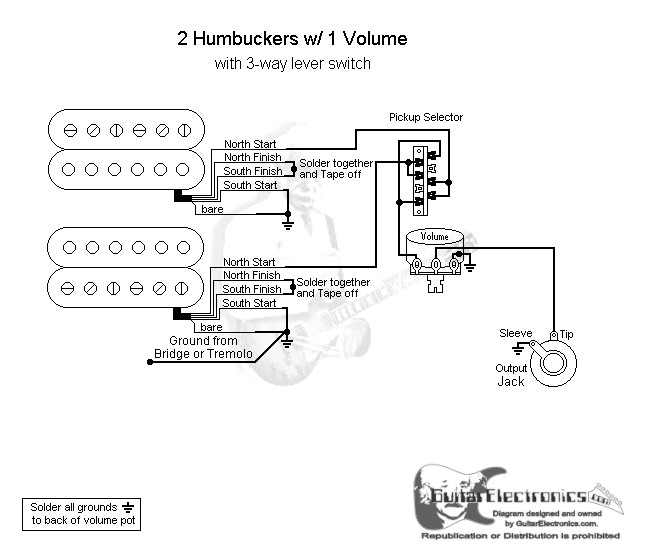

Basic guitar wiring diagram with 2 humbuckers, 3-way lever switch, one volume control and no tone control. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
3 Reviews Hide Reviews Show Reviews
For My Face Melter Strat
Excellent diagram, as always. I'm using this one on my face meter Strat with a S.D. 59 and JB set. Works great!
G.E. nails it
order cam in red/blk solid core 22awg wire ....thk u as always... Playing since 81 i shouldn't have too look,~lol ...but want too, Best Easiest Wiring reference EVER ... we love your pkup's uncle "S.D." but trying to reference this info (me) morning~noon or night any where else is is a history in mystery > ! ...im in / im out.......thx G.E.
