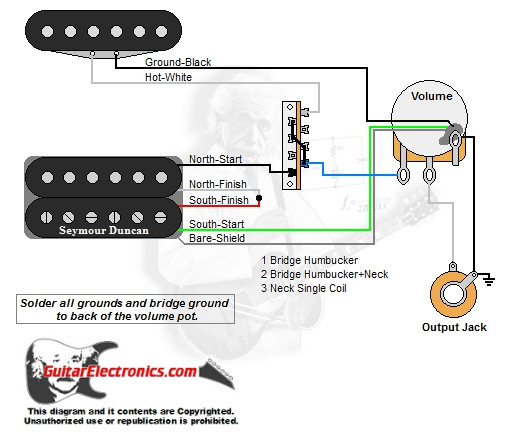

Guitar wiring diagram with 1 humbucker, 1 single coil, 3-way lever switch, 1 volume. Diagram drawn with Seymour Duncan humbucker color codes. View Humbucker Color codes for other pickup brands. Click image to view full size diagram. To download, right click on the diagram and select "save image"
