2 Humbuckers/3-Way Toggle Switch/2 Volumes/2 Tones/Coil Tap

$0.00

2 Humbuckers/3-Way Toggle Switch/2 Volumes/2 Tones/Coil Tap

$0.00
SKU:
WD2HH3T22_01
Share

Product Description

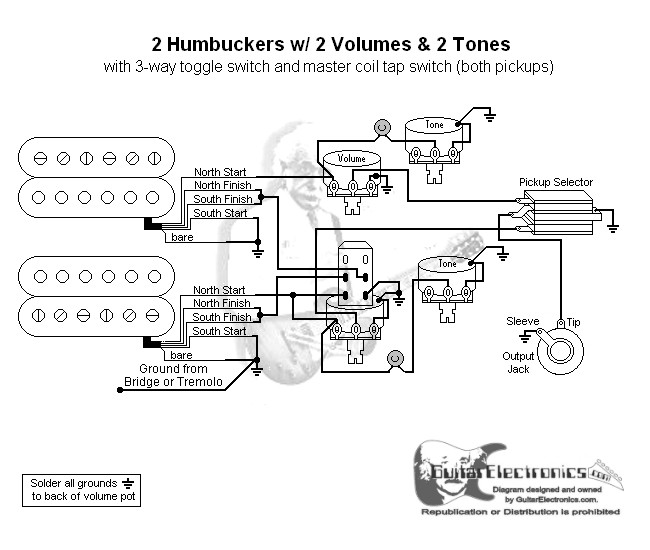

Guitar wiring diagram with 2 humbuckers, 3-way Toggle switch, two volumes and two tone controls, Typical Gibson style guitar with a push/pull switch to select between humbucker and single coil mode. In Single coil mode, the North coil of the neck pickup and the South coil of the bridge pickup are active. Click diagram image to open/view full size version.   Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited.
