1 Humbucker/1 Volume/Series-Parallel

$0.00

1 Humbucker/1 Volume/Series-Parallel

$0.00
SKU:
WD1H10_04
Share

Product Description

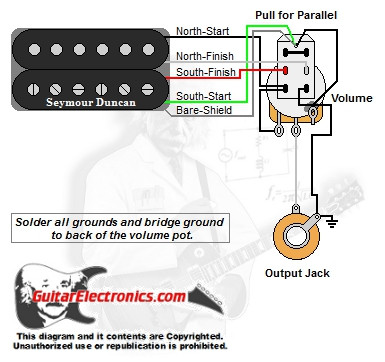

Guitar wiring diagram with one humbucker and one volume and push pull switch for series and parallel mode. With the switch down the humbucker is in series mode (full power & tone) With the switch up, the pickup is in parallel humbucker mode (clean/sparkle tone). Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies to do the job right. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited. Click diagram image to view full size.

Download PDF Version Download printable PDF version.

Click to view wire color codes for all brands of humbuckers.
