1 Humbucker/1 Volume/1 Tone/Series-Parallel

$0.00

1 Humbucker/1 Volume/1 Tone/Series-Parallel

$0.00
SKU:
WD1H11_04
Share

Product Description

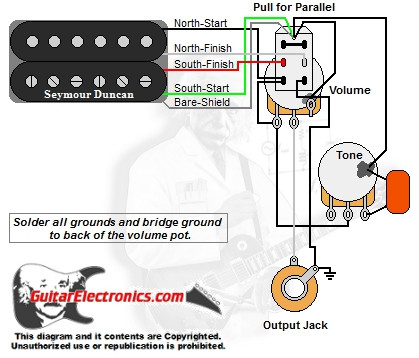

Guitar wiring diagram with one humbucker and one volume and one tone control. A push pull switch on the volume selects: series humbucker (down) or parallel humbucker (up). Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies to do the job right. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited. Click diagram image to view full size.

Download PDF Version Download printable PDF version.

Click to view wire color codes for all brands of humbuckers.
