1 Humbucker/2 Single Coils/5-Way Switch/1 Volume/2 Tones/04

$0.00

1 Humbucker/2 Single Coils/5-Way Switch/1 Volume/2 Tones/04

$0.00
SKU:
WDUHSS5L1204
Share

Product Description

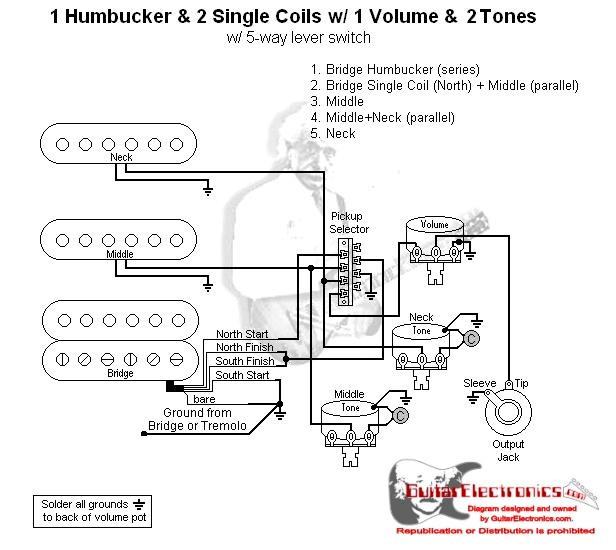

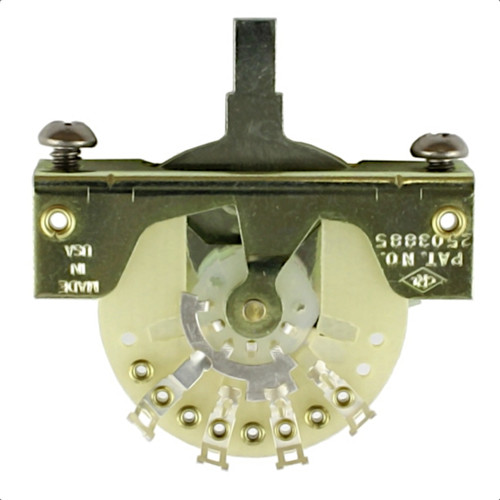

Guitar wiring diagram with 1 Humbucker, 2 single coils, 5-way lever switch, 1 volume, 2 tones. Typical Strat style guitar with bridge humbucker. 1. Bridge HB, 2. Bridge single coil (north) + Middle SC, 3. Middle SC, 4. Neck SC+Mid SC, 5. Neck SC. Click diagram image to open/view full size version.   Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited.
