2 Humbuckers/3-Way Toggle Switch/2 Volumes/2 Tones/Series-Split-Parallel & Master Series-Parallel

$0.00

2 Humbuckers/3-Way Toggle Switch/2 Volumes/2 Tones/Series-Split-Parallel & Master Series-Parallel

$0.00
Share

Product Description

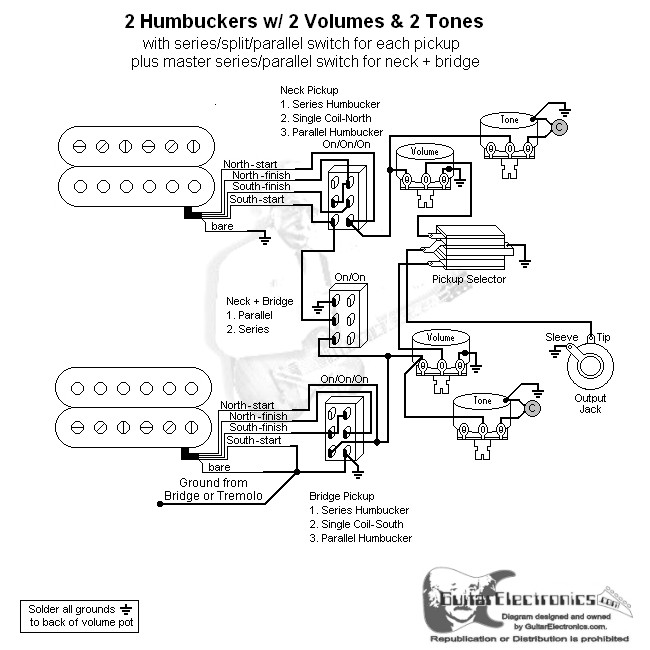

Guitar wiring diagram with 2 humbuckers, 3-way Toggle switch, two volumes and two tone controls and three mini switches. One mini toggle switch selects Series/Single Coil (North)/Parallel for the neck pickup, one mini toggle switch selects between Series/Single Coil (South)/Parallel for the bridge pickup and one mini switch combines the neck and bridge pickups in series or parallel. Note: to access the neck + bridge series mode, the pickup selector must be in the neck position. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

View related parts for this diagram below.
