2 Humbuckers/3-Way Toggle Switch/1 Volume/1 Tone/Series Parallel

$0.00

2 Humbuckers/3-Way Toggle Switch/1 Volume/1 Tone/Series Parallel

$0.00
SKU:
WD2HH3T11_04
Share

Product Description

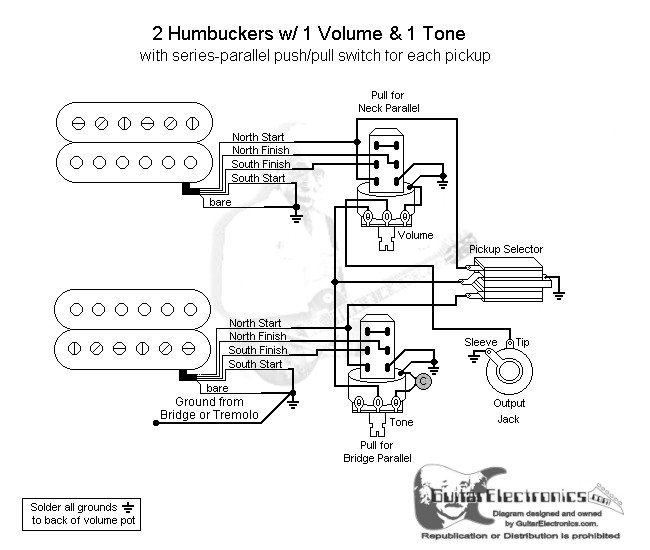

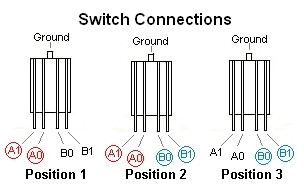

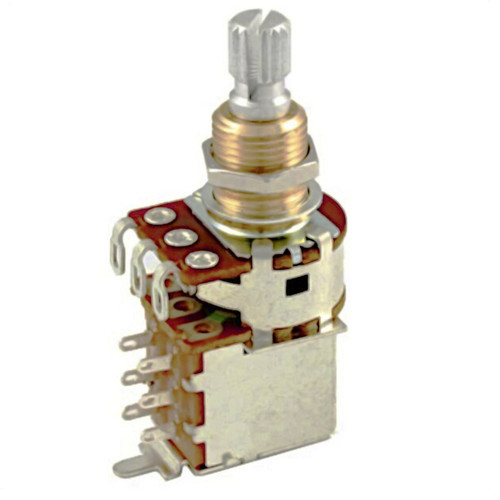

Guitar wiring diagram with 2 humbuckers, 3-way toggle switch, one volume and tone control, plus two push/pull switches to select series or parallel modes for each humbucker. Click diagram image to open/view full size version.   Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited.
