2 Humbuckers/3-Way Toggle Switch/1 Volume/1 Tone/Coil Tap & Reverse Phase

$0.00

2 Humbuckers/3-Way Toggle Switch/1 Volume/1 Tone/Coil Tap & Reverse Phase

$0.00
Share

Product Description

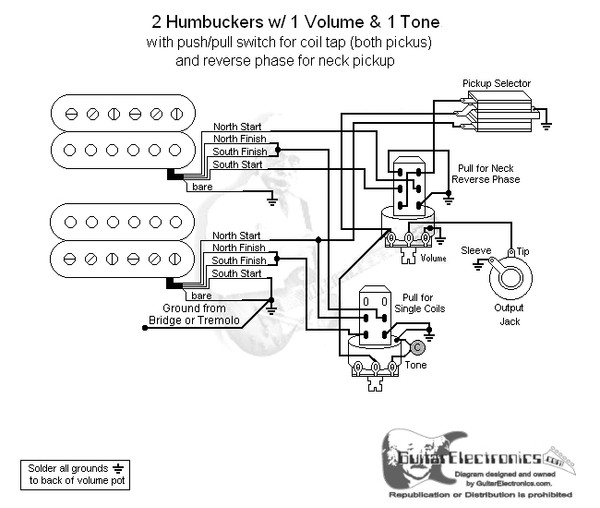

Guitar wiring diagram with 2 humbuckers, 3-way toggle switch, one volume and tone control, plus one push/pull switch to select humbucker or single coil mode and one push/pull switch to select reverse phase for the neck pickup. Note: With the phase switch down, the single coil mode switch selects the noth coil of the neck pickup. With the phase switch up, the single coil mode switch selects the South coil of the neck pickup. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

View related parts for this diagram below.
