2 Humbuckers/3-Way Lever Switch/1 Volume/2 Tones/Coil Tap

$0.00

2 Humbuckers/3-Way Lever Switch/1 Volume/2 Tones/Coil Tap

$0.00
SKU:
WD2HH3L12_01
Share

Product Description

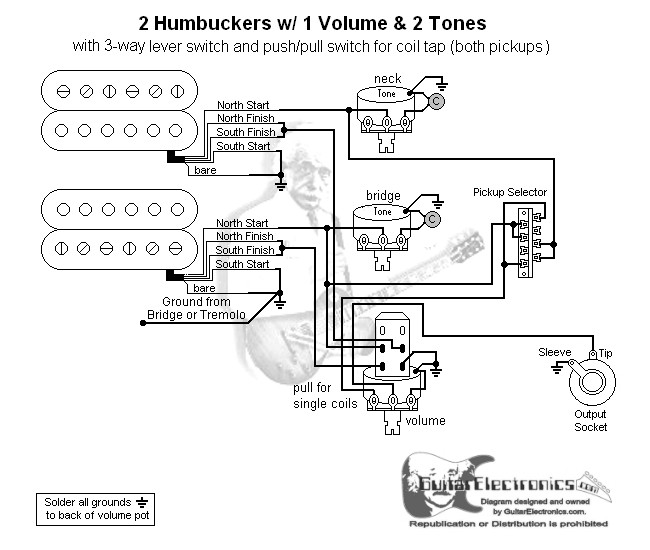

Guitar wiring diagram with 2 humbuckers, 3-way lever switch, one volume and two tone controls, one tone control plus a push/pull switch to select between humbucker and single coil mode. Click diagram image to open/view full size version.   Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited.
