1 Humbucker/1 Volume/Series-Parallel & Coil Tap South

$0.00

1 Humbucker/1 Volume/Series-Parallel & Coil Tap South

$0.00
SKU:
WD1H10_05
Share

Product Description

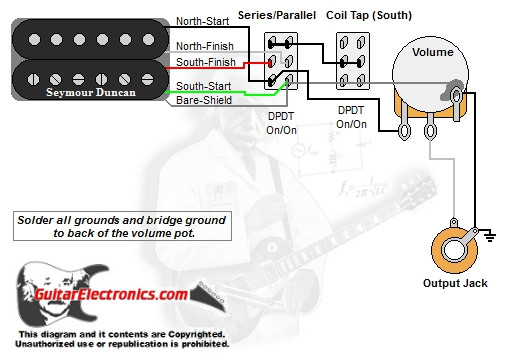

Guitar wiring diagram with one humbucker, one volume control and two On/On mini switches. One switch selects series humbucker or parallel humbucker and one switch selects humbucker mode or single coil mode (South coil). Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies to do the job right. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited. Click diagram image to view full size.

Download PDF Version Download printable PDF version.

Click to view wire color codes for all brands of humbuckers.
