1 Humbucker/1 Volume/Pull for South Single Coil

$0.00

1 Humbucker/1 Volume/Pull for South Single Coil

$0.00
SKU:
WD1H10_02
Share

Product Description

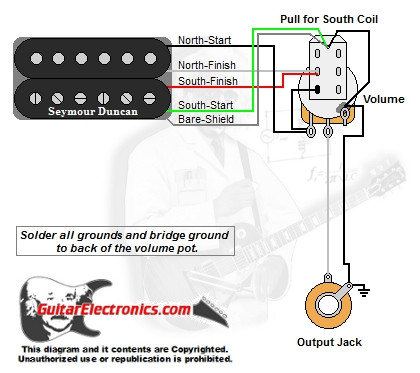

Guitar wiring diagram with one humbucker and one volume control with push pull switch for coil split (South). Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies to do the job right. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited. Click diagram image to view full size.

Download PDF Version Download printable PDF version.

Click to view wire color codes for all brands of humbuckers.
