1 Humbucker/1 Volume/1Tone/Pull for South Single Coil

$0.00

1 Humbucker/1 Volume/1Tone/Pull for South Single Coil

$0.00
Share

Product Description

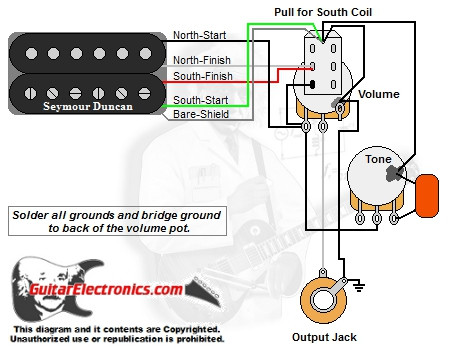

Guitar wiring diagram with one humbucker, one volume and one tone and a push pull switch on the volume control that taps the humbucker for South single coil. Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

Download PDF Version Download printable PDF version.      View related parts for this wiring diagram below.

Click to view wire color codes for all brands of humbuckers.
