1 Humbucker/1 Volume/1 Tone/5-Way Rotary Switch

$0.00

1 Humbucker/1 Volume/1 Tone/5-Way Rotary Switch

$0.00
SKU:
WD1H5R11_00
Share

Product Description

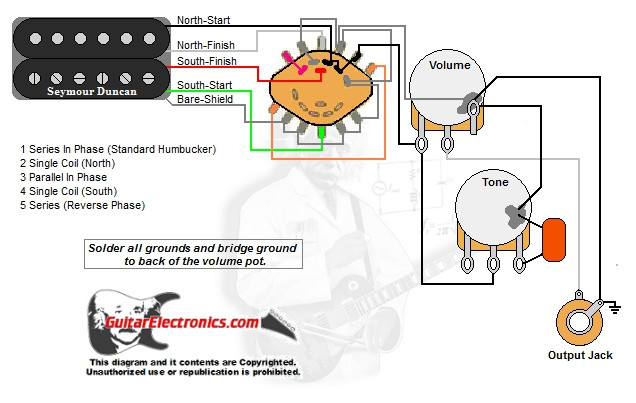

Guitar wiring diagram with one humbucker and one volume control with a 5-position rotary switch switch that selects 5 different sounds: 1.series in-phase 2. North coil 3.parallel in-phase 4.South coil 5.series reverse-phase. Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies to do the job right. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited. Click diagram image to view full size.

Download PDF Version Download printable PDF version.

Click to view wire color codes for all brands of humbuckers.
